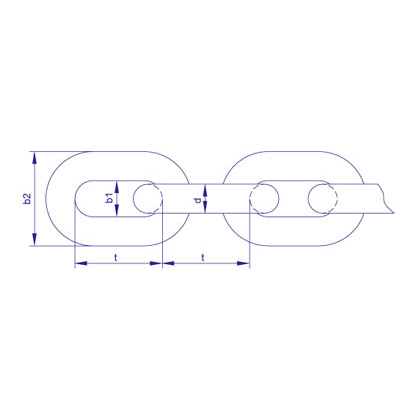

Dia.

WLL/T

B.L/T

t(mm)

b1(mm)

b2(mm)

6mm

1.12

4.48

18

7.8

22.2

7mm

1.5

6

21

9.1

25.9

8mm

2

8

24

10.4

29.6

10mm

3.15

12.6

30

13

37

13mm

5.3

21.2

39

16.9

48.1

16mm

8

32

48

20.8

59.2

18mm

10

40

54

23.4

66.6

20mm

12.5

50

60

26

74

22mm

15

60

66

28.6

81.4

26mm

21.2

84.8

78

33.8

96.2

32mm

31.5

126

96

41.6

118
