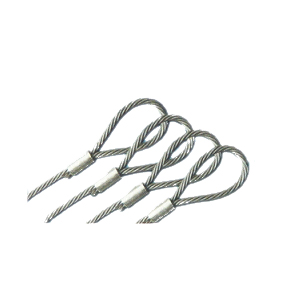

Wire rope slings Swaged Joint Soft Loop Slings
Rope Diameter (mm)	Soft loop dimensions (mm)		Minimum breaking load(t)	Working load limit(t)		Rope Diameter (mm)	Soft loop dimensions (mm)		Minimum breaking load(t)	Working load limit(t)
Rope Diameter (mm)	Soft loop dimensions (mm)			Working load limit(t)		Rope Diameter (mm)	Soft loop dimensions (mm)			Working load limit(t)
d	A	B		n=5	n=6	d	A	B		n=5	n=6
5	130	65	1.25	0.25	0.20	54	1000	500	146.84	29.40	24.50
6	150	75	1.80	0.36	0.30	56	1000	500	157.04	31.40	26.20
7	150	75	2.46	0.50	0.40	58	1200	600	169.27	33.90	28.20
8	200	100	3.21	0.60	0.50	60	1200	600	180.49	36.10	30.10
9	200	100	4.07	0.80	0.70	62	1200	600	185.59	37.10	31.00
10	200	100	5.03	1.00	0.80	64	1300	650	197.82	40.00	33.00
11	230	115	6.08	1.20	1.00	66	1300	650	210.06	42.00	35.00
12	230	115	7.23	1.50	1.20	68	1400	700	223.32	44.70	37.20
13	230	115	8.49	1.70	1.40	70	1400	700	236.57	47.30	39.40
14	250	125	9.85	2.00	1.60	72	1400	700	249.93	50.00	41.60
16	300	150	12.85	2.60	2.10	74	1500	750	264.01	52.80	44.00
18	300	150	16.32	3.30	2.70	76	1500	750	278.38	55.70	46.40
20	350	175	20.09	4.00	3.40	78	1600	800	293.68	58.70	49.00
22	350	175	24.27	4.90	4.10	80	1600	800	307.95	61.10	51.30
24	450	225	28.96	5.80	4.80	82	1600	800	324.27	64.90	54.00
26	450	225	33.96	6.80	5.70	84	1700	850	339.57	67.90	56.60
28	500	250	39.36	7.90	6.60	86	1700	850	356.90	71.40	59.50
30	500	250	45.17	9.00	7.50	88	1800	900	373.22	74.60	62.20
32	550	275	51.39	10.30	8.60	90	1800	900	390.55	78.10	65.10
34	600	300	58.12	11.60	9.70	92	1800	900	407.89	81.60	68.00
36	600	300	65.06	13.00	10.80	94	1900	950	426.24	85.30	71.00
38	600	300	72.50	14.50	12.10	96	1900	950	444.60	88.90	74.10
40	700	350	80.35	16.10	13.40	98	2000	1000	462.95	92.60	77.20
42	800	400	88.61	17.70	14.80	100	2000	1000	482.33	96.50	80.40
44	800	400	97.28	19.50	16.20	102	2000	1000	501.10	100.40	83.60
46	900	450	106.05	21.20	17.70	104	2100	1050	521.07	104.20	86.90
48	900	450	116.25	23.30	19.40	106	2100	1050	541.47	108.30	90.30
50	1000	500	125.43	25.10	21.00	108	2200	1100	561.86	112.40	93.60
52	1000	500	135.62	27.10	22.70	110	2200	1100	583.28	116.70	97.20

Note:
1.Steel wire ropes with diameters fromφ5 toφ60 are 6×37+FC-1670N/mm2 type complying to GB/T20118 standard, while the ones with diameters fromφ62 toφ110 are 6×61+FC-1670N/mm2 type complying to GB/T20067 standard.

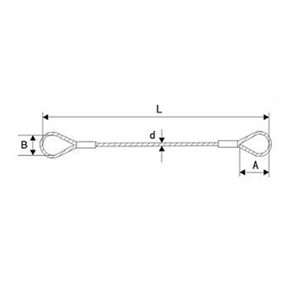

2.Values “A” or “B” can be customized. Otherwise, the values in the table apply.
3. “L” value meets client requirements; n=5 and n=6 are safety factors,determined by users.
