Product Name

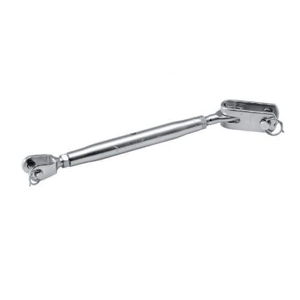

Rigging Screw Fork&Toggle

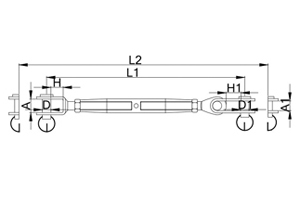

| Art. No. | Thread Size | A (mm) | D (mm) | H (mm) | A1 (mm) | D1 (mm) | H1 (mm) | L1 (mm) | L2 (mm) | KG/100 | B.L.KG. |
| SS-B1008-0006 | M6 | 7.5 | 6 | 10 | 8 | 6 | 13 | 175 | 245 | 8 | 1250 |
| SS-B1008-0008 | M8 | 11 | 8 | 11 | 10 | 8 | 16 | 205 | 280 | 15.5 | 2350 |
| SS-B1008-0010 | M10 | 12 | 9 | 14 | 12 | 9 | 20 | 240 | 330 | 28 | 3500 |
| SS-B1008-0012 | M12 | 14 | 12 | 20 | 18 | 12 | 25 | 300 | 405 | 53 | 5100 |
| SS-B1008-0016 | M16 | 17 | 16 | 26 | 17 | 16 | 29 | 380 | 520 | 117 | 8000 |
| SS-B1008-0020 | M20 | 20 | 19 | 30 | 20 | 19 | 30 | 435 | 575 | 203 | 13000 |
| SS-B1008-0022 | M22 | 30 | 22 | 46.5 | 26 | 22 | 35 | 540 | 720 | 452 | 17000 |
| SS-B1008-0024 | M24 | 30 | 25 | 49 | 29 | 25 | 40 | 620 | 845 | 662 | 20000 |
| SS-B1008-0027 | M27 | 34 | 28 | 54 | 34 | 28 | 46 | 695 | 930 | 751 | 25500 |
| SS-B1008-0030 | M30 | 40 | 32 | 62 | 40 | 32 | 54 | 765 | 1020 | 948 | 31000 |
| SS-B1008-0036 | M36 | 44 | 36 | 70 | 44 | 36 | 62 | 845 | 1115 | 1365 | 43000 |
