Art. No.

Thread Size

Wire mm

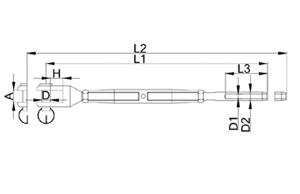

A (mm)

D (mm)

H (mm)

D1 (mm)

D2 (mm)

L3 (mm)

L1 (mm)

L2 (mm)

KG/100

B.L.KG.

SS-1005-0402

M4

2

5.5

4

8

2.2

4.8

24

130

190

3

500

SS-1005-0502

M5

2

6.5

5

10

2.2

5.5

32

150

210

5

800

SS-1005-0525

M5

2.5

6.5

5

10

2.7

5.5

32

150

210

5

800

SS-1005-0603

M6

3

7.5

6

10

3.3

6.35

39

180

250

8.5

1250

SS-1005-0604

M6

4

7.5

6

10

4.3

7.5

45

190

260

9.5

1250

SS-1005-0804

M8

4

11

8

11

4.3

7.5

45

210

285

16

2350

SS-1005-0805

M8

5

11

8

11

5.3

9

52

215

290

16.5

2350

SS-1005-1005

M10

5

12

9

14

5.3

9

52

240

330

28

3500

SS-1005-1006

M10

6

12

9

14

6.4

12.6

64

255

345

31.5

3500

SS-1005-1206

M12

6

14

12

20

6.4

12.6

64

300

410

55

5100

SS-1005-1208

M12

8

14

12

20

8.4

16

80

320

430

61

5100

SS-1005-1407

M14

7

15

12

22

7.4

14.2

70

330

450

68

5900

SS-1005-1608

M16

8

17

16

26

8.4

16

80

370

510

120

8000

SS-1005-16010

M16

10

17

16

26

10.5

18

90

380

520

124

8000

SS-1005-2010

M20

10

20

19

30

10.5

18

90

410

560

237

13000

SS-1005-2012

M20

12

20

19

30

12.6

20

105

425

575

242

13000

SS-1005-2214

M22

14

22

22

35

14.7

25

140

540

720

565

17000

SS-1005-2416

M24

16

25

25

38

16.9

28

160

630

860

620

20000

SS-1005-2719

M27

19

30

28

41

20

34.5

200

720

950

1185

25500

SS-1005-3022

M30

22

35

32

52

23.2

40.5

230

820

1080

1675

31000

SS-1005-3626

M36

26

35

35

52

27.5

46

280

910

1185

2242

43000
