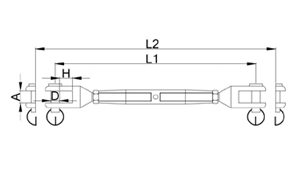

Art. No.

Thread Size

A (mm)

D (mm)

H (mm)

L1 (mm)

L2 (mm)

KG/100

B.L.KG.

SS-1004-0004

M4

5.5

4

8

115

175

4

500

SS-1004-0005

M5

6.5

5

10

135

195

6

800

SS-1004-0006

M6

7.5

6

10

160

230

10.5

1250

SS-1004-0008

M8

11

8

11

180

255

21

2350

SS-1004-0010

M10

12

9

14

210

300

35.5

3500

SS-1004-0012

M12

14

12

20

270

380

66

5100

SS-1004-0014

M14

15

12

22

295

415

74

5900

SS-1004-0016

M16

17

16

26

340

480

150

8000

SS-1004-0020

M20

20

19

30

370

520

320

13000

SS-1004-0022

M22

22

22

35

455

635

850

17000

SS-1004-0024

M24

25

25

38

530

760

1150

20000

SS-1004-0027

M27

30

28

41

580

810

1800

25500

SS-1004-0030

M30

35

32

52

655

915

2610

31000

SS-1004-0036

M36

35

35

52

695

970

3340

43000
