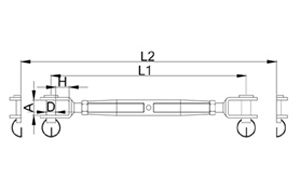

Art. No.

Thread Size

A (mm)

D (mm)

H (mm)

L1 (mm)

L2 (mm)

KG/100

B.L.KG.

SS-1001-0004

M4

5.5

4

8

110

170

3.6

500

SS-A1001-0005

M5

6.5

5

10

130

190

5.6

800

SS-B1001-0005

M5

7.5

5

9

130

190

4.7

800

SS-A1001-0006

M6

7.5

6

10

150

220

8.6

1300

SS-B1001-0006

M6

8

6

10

150

220

8.3

1250

SS-1001-0008

M8

11

8

11

165

240

15.5

2350

SS-1001-0010

M10

12

9

14

190

280

28

3500

SS-1001-0012

M12

14

12

20

245

360

53

5100

SS-1001-0014

M14

15

12

22

270

390

64.5

5900

SS-1001-0016

M16

17

16

26

310

450

118

8000

SS-1001-0020

M20

20

19

30

360

510

203

13000

SS-1001-0022

M22

30

22

46.5

472

653

448

17000

SS-1001-0024

M24

30

25

49

520

750

638

20000

SS-1001-0027

M27

34

28

54

595

830

752

27000

SS-1001-0030

M30

40

32

62

660

915

948

31000

SS-1001-0036

M36

44

36

70

730

1000

1366

43000
