Product Name

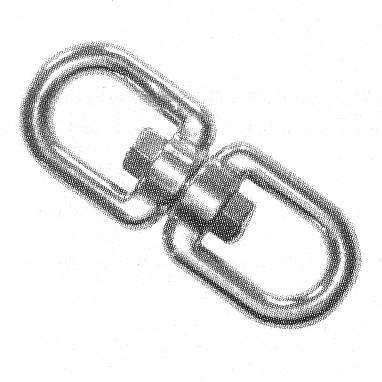

Swivel(eye&eye)

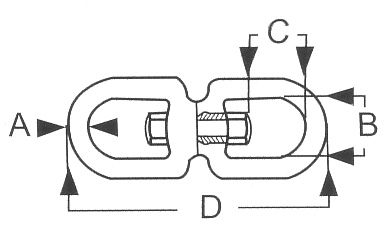

| A(inch) | B(inch) | C(inch) | D(inch) | WLL(lbs) |
| 5/32" | 0.43" | 0.50" | 2.00" | 150 |
| 3/16" | 0.50" | 0.50" | 2.31" | 300 |
| 1/4" | 0.56" | 0.56" | 2.56" | 600 |
| 5/16" | 0.75" | 0.75" | 3.62" | 1100 |
| 3/8" | 0.87" | 1.00" | 4.62" | 1540 |
| 1/2" | 1.25" | 1.31" | 6.00" | 2640 |
| 5/8" | 1.50" | 1.62" | 7.37" | 4750 |
| 3/4" | 1.62" | 2.00" | 8.50" | 7000 |
| 7/8" | 1.87" | 2.00" | 9.25" | 8000 |
| 1" | 2.50" | 2.56" | 11.00" | 10000 |
