Product Name

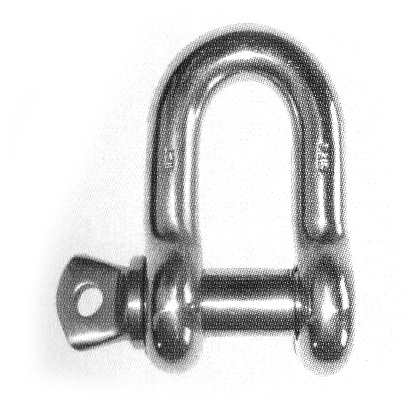

Chain shackle US type

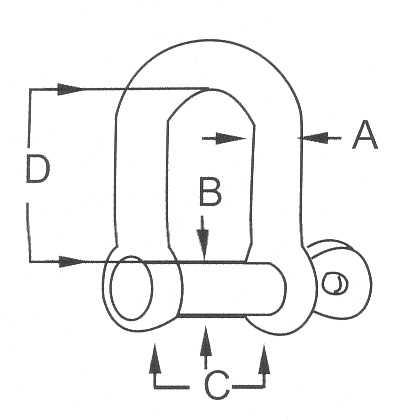

| A(inch) | B(inch) | C(inch) | D(inch) | WLL(lbs) |
| 3/16" | 1/4" | 0.38" | 0.75" | 300 |
| 1/4" | 5/16" | 0.47" | 0.88" | 450 |
| 5/16" | 3/8" | 0.53" | 1.03" | 650 |
| 3/8" | 7/16" | 0.66" | 1.25" | 1000 |
| 7/16" | 1/2" | 0.75" | 1.44" | 1500 |
| 1/2" | 5/8" | 0.81" | 1.63" | 2000 |
| 5/8" | 3/4" | 1.06" | 2.00" | 3000 |
| 3/4" | 7/8" | 1.25" | 2.38" | 4500 |
| 7/8" | 1" | 1.44" | 2.81" | 6000 |
| 1" | 1-1/8" | 1.69" | 3.19" | 8000 |
