Product Name

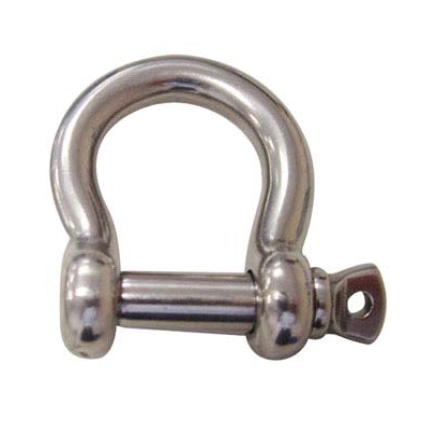

Europe type bow shackle

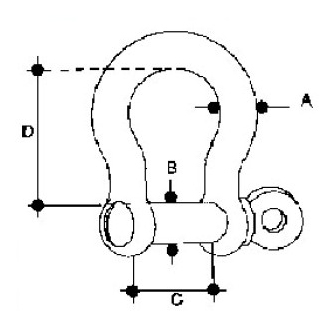

| Size(mm) | A(mm) | B(mm) | C(mm) | D(mm) | WLL(kgs) |
| 4 | 4 | 4 | 8 | 16 | 150 |
| 5 | 5 | 5 | 10 | 20 | 240 |
| 6 | 6 | 6 | 12 | 24 | 340 |
| 8 | 8 | 8 | 16 | 32 | 600 |
| 10 | 10 | 10 | 20 | 40 | 750 |
| 12 | 12 | 12 | 24 | 48 | 1000 |
| 14 | 14 | 14 | 28 | 56 | 1350 |
| 16 | 16 | 16 | 32 | 64 | 2000 |
| 18 | 18 | 18 | 36 | 72 | 2750 |
| 20 | 20 | 20 | 40 | 80 | 3000 |
| 22 | 22 | 22 | 44 | 88 | 3600 |
| 25 | 25 | 25 | 50 | 100 | 4500 |
