Rope Diameter

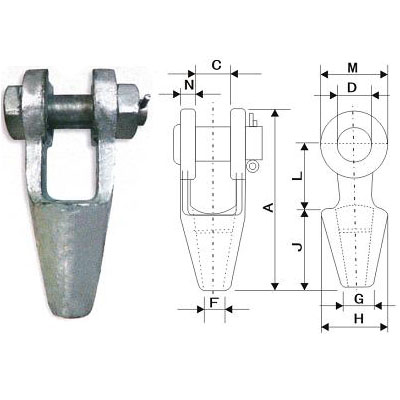

Main technical parameters

A

C

D

F

G

H

J

L

M

N

(in.)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

  1/4

6

115.82

23.11

17.53

9.65

11.53

39.62

57.15

39.62

33.27

9.14

5/16-3/8

8-9

122.94

20.57

20.57

12.70

20.57

42.93

57.15

44.45

38.10

11.18

7/16-1/2

11-12

141.22

25.40

25.40

14.22

23.88

47.75

62.50

60.80

47.75

12.70

9/16-5/8

14-16

171.45

21.75

30.23

17.53

28.70

57.15

76.20

63.60

57.15

14.22

  3/4

19

201.68

38.10

35.05

20.57

31.75

66.53

88.90

76.20

66.55

15.75

  7/8

22

234.95

44.45

41.40

23.88

38.10

82.55

101.60

88.80

79.50

23.32

1

25

268.22

50.80

50.80

28.70

44.45

95.25

114.30

101.60

95.25

22.35

1 1/8

28

299.97

57.15

57.15

31.75

50.80

104.65

127.00

117.35

104.65

25.40

1 1/4-1 3/8

31.5-35

335.03

63.50

63.50

38.10

57.15

120.65

139.70

127.00

120.60

28.70

1 1/2

38

384.05

76.02

69.85

41.40

69.85

133.35

152.40

152.40

136.65

30.23

1 5/8

42

412.75

76.20

76.20

44.45

76.20

139.70

165.10

165.10

146.05

33.27

1 3/4-1 7/8

45-47.5

463.55

88.90

88.90

50.80

79.50

162.05

190.50

177.80

165.10

39.62

2-2 1/8

50-53

546.10

101.60

95.25

57.17

95.25

187.45

215.90

228.60

177.80

45.97

2 1/4-2 3/8

57-60

596.90

114.30

107.95

63.50

101.60

209.55

228.60

254.00

196.85

54.10

2 1/2-2 5/8

63-66

647.70

127.00

120.65

73.15

114.30

234.95

247.65

273.05

215.90

60.45

2 3/4-2 7/8

70-73

692.15

133.35

127.00

97.25

123.95

266.70

279.40

279.40

228.60

73.15

3-3 1/8

76-80

736.60

146.05

133.35

85.85

133.35

282.45

304.80

285.75

241.30

76.20

3 1/4-3 3/8

82-85

784.35

158.75

139.70

91.95

146.05

301.75

330.40

298.45

254.00

79.25

3 1/2-3 5/8

89-92

844.55

171.45

152.40

95.55

165.10

314.45

355.60

317.50

273.05

82.55

3 3/4-4

95-100

920.75

190.50

177.80

107.95

184.15

345.95

381.00

342.90

317.50

88.90
