Rope Diameter

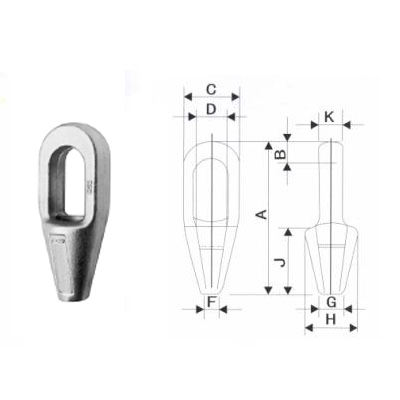

Main technical parameters

A

B

C

D

F

G

H

J

K

(in.)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

  1/4

6

114.30

12.70

38.10

22.35

9.65

17.53

39.62

57.15

12.70

5/16-3/8

8-9

123.95

15.75

42.93

24.64

12.70

20.57

42.93

57.15

17.53

7/16-1/2

11-12

138.18

17.53

50.80

29.64

14.22

23.88

47.75

63.50

22.35

9/16-5/8

14-16

160.27

20.57

66.80

35.81

17.53

28.45

60.45

76.20

25.40

  3/4

19

192.02

26.92

76.20

42.16

20.57

31.75

69.85

90.42

31.75

  7/8

22

222.25

31.75

92.20

47.75

23.88

38.10

81.55

101.60

38.10

1

25

250.95

35.05

104.90

58.42

28.70

44.45

95.25

112.78

44.45

1 1/8

28

279.40

38.10

114.30

65.02

31.75

50.80

104.90

127.00

50.80

1 1/4-1 3/8

31.5-35

307.85

41.40

134.62

71.37

38.10

57.15

120.65

139.70

57.15

1 1/2

38

354.08

49.28

135.38

81.03

41.40

69.85

133.35

152.40

63.50

1 5/8

42

384.30

54.10

146.05

82.55

44.45

76.20

139.70

165.10

69.85

1 3/4-1 7/8

45-47.5

438.15

55.63

171.45

95.25

50.80

79.50

162.05

190.50

76.20

2-2 1/8

50-53

495.30

61.98

193.80

111.25

57.15

95.25

187.45

215.90

82.55

2 1/4-2 3/8

57-60

536.70

66.80

215.90

127.00

63.50

101.60

209.55

228.60

92.20

2 1/2-2 5/8

63-66

596.90

79.25

241.30

139.70

73.15

114.30

234.95

247.65

101.60

2 3/4-2 7/8

70-73

644.65

79.25

273.05

158.75

79.25

123.95

285.83

279.40

123.95

3-3 1/8

76-80

685.80

82.55

292.10

171.45

85.85

133.25

292.10

304.80

133.35

3 1/4-3 3/8

82-85

742.95

101.60

311.15

184.15

91.95

146.05

311.15

330.20

146.05

3 1/2-3 5/8

89-92

787.40

101.60

330.20

196.85

98.55

165.10

330.20

335.60

158.75

3 3/4-4

95-100

844.55

107.95

361.95

215.90

107.95

184.15

361.95

381.00

177.80
