Product Name

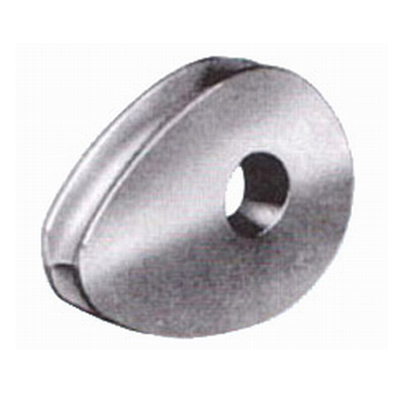

DIN 3091 Heavy Malleable Cast Wire Rope Thimble
|

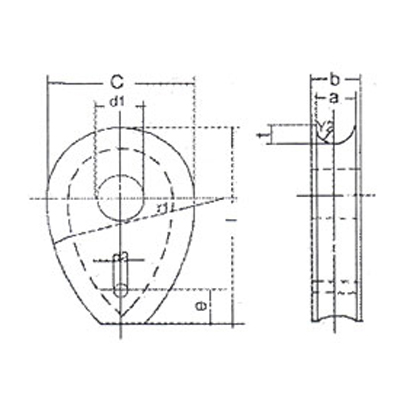

Item No./Size |
Primary size (mm) | ||||||||
|
a |
b |
c |
d1 |
t |
I |
n |
d2 |
e | |
|
BR0205-08 |
9 |
15 |
40 |
14 |
4.5 |
56 |
48 |
|
|
|
BR0205-10 |
11 |
17.5 |
50 |
18 |
6 |
70 |
60 |
|
|
|
BR0205-12 |
13 |
20 |
60 |
21 |
7.5 |
84 |
72 |
|
|
|
BR0205-14 |
16 |
23.5 |
70 |
25 |
9 |
98 |
84 |
|
|
|
BR0205-16 |
18 |
26 |
80 |
28 |
10.5 |
110 |
96 |
|
|
|
BR0205-18 |
20 |
28.5 |
90 |
31 |
12 |
130 |
110 |
|
|
|
BR0205-20 |
22 |
31 |
100 |
35 |
13.5 |
140 |
120 |
10 |
30 |
|
BR0205-22 |
24 |
33.5 |
110 |
38 |
15 |
150 |
130 |
10 |
30 |
|
BR0205-24 |
26 |
36 |
120 |
41 |
16.5 |
170 |
140 |
10 |
30 |
|
BR0205-26 |
29 |
39.5 |
130 |
44 |
18 |
180 |
160 |
10 |
30 |
|
BR0205-28 |
31 |
42 |
140 |
47 |
20 |
200 |
170 |
10 |
30 |
|
BR0205-32 |
35 |
47 |
160 |
53 |
23 |
220 |
190 |
10 |
30 |
|
BR0205-36 |
40 |
53 |
180 |
59 |
26 |
250 |
220 |
10 |
30 |
|
BR0205-40 |
44 |
58 |
200 |
65 |
29 |
280 |
240 |
10 |
30 |
|
BR0205-44 |
48 |
63 |
220 |
70 |
32 |
310 |
260 |
15 |
45 |
