Rope

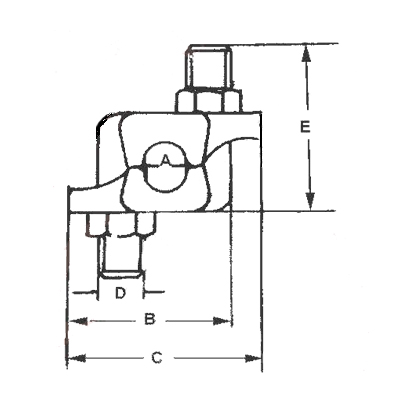

DIMENSIONS(mm)

ITEM NO./Size(in)

A

B

C

D

E

BR0305-3/16-1/4

6.35

31.75

37.3

9.65

32.5

BR0305-5/16

7.87

34.04

39.69

9.65

37.34

BR0305-3/8

9.65

40.39

47.63

11.18

45.97

BR0305-7/16

12.7

47.75

55.56

12.7

55.6

BR0305-1/2

12.7

47.75

55.56

12.7

55.6

BR0305-9/16

16

57.9

66.68

16

68.33

BR0305-5/8

16

57.9

66.68

16

68.33

BR0305-3/4

19.05

68.33

77.79

19.05

74.68

BR0305-7/8

22.35

75.44

79.38

19.05

84.07

BR0305-1

25.4

78.23

89.69

19.05

94.5

BR0305-1-1/8

28.7

87.38

99.22

22.35

106.17

BR0305-1-1/4

31.75

90.42

102.3

22.35

107.95

BR0305-1-3/8

38.1

104.9

118.27

25.4

141.22

BR0305-1-1/2

38.1

104.9

118.27

25.4

141.22
