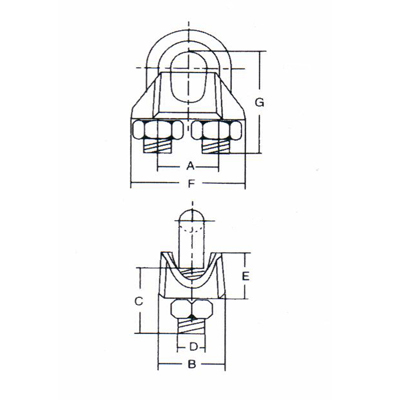

Item No./Size(in.)

A

B

C

D

E

F

G

100/WT  KG

BR0302-1/8

11

14

14

10/24

10.8

22

20

1.5

BR0302-3/16

13.5

15

16

1/4-20

13

26

24

3

BR0302-1/4

17

18.5

20

5/16-18

15

32

31.5

5.16

BR0302-5/16

18.3

20

22

5/16-18

16

35

34

5.95

BR0302-3/8

22.5

22

27

3/8-16

22

40.5

41.8

10.01

BR0302-7/16

24

23

30

3/8-16

22

43

42.8

11.43

BR0302-1/2

27

26

35

7/16-14

23.3

49

53.9

17.42

BR0302-9/16

30

26.5

40

1/2-13

27

52.5

54.7

22.56

BR0302-5/8

33

28.5

40

1/2-13

28

57.5

59.2

24.84

BR0302-3/4

34.5

32

42

9/16-12

34

61

68.7

36.53

BR0302-7/8

41

37

46

5/8-11

38

71

78

53.23

BR0302-1

45.5

42

55

5/8-11

43

77.5

67.5

66.32
