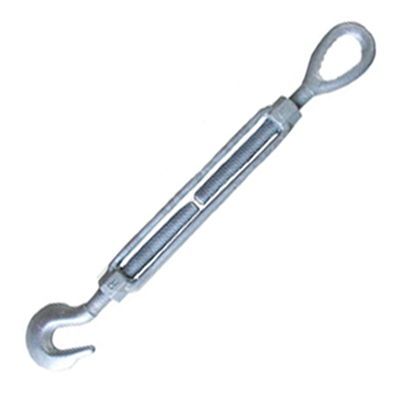

Hook【Back】
ITEM NO./SIZE |
WLL/lbs |
Weight /lbs |

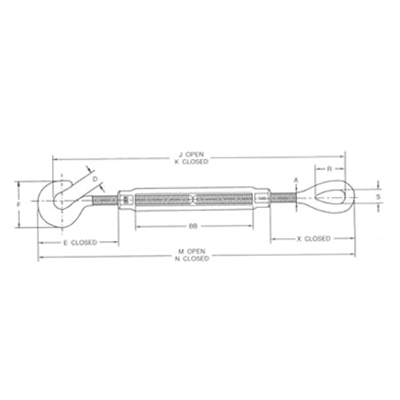

DIMENSIONS(in) |
||||||||||
A |
D |
E Closed |
F |
J open |
K Closed |
M open |
N Closed |
R |
S |
X |
|||
BR0401-1/4X4 |
400 |
0.29 |
0.25 |
0.45 |
1.59 |
1.27 |
11.46 |
7.46 |
12.09 |
8.09 |
0.78 |
0.34 |
1.75 |
BR0401-5/16X4 |
700 |
0.49 |
0.31 |
0.5 |
1.94 |
1.5 |
13.198 |
8.69 |
13.47 |
9.47 |
0.94 |
0.44 |
2.09 |
BR0401-3/8X6 |
1000 |
0.78 |
0.38 |
0.56 |
2.3 |
1.77 |
16.98 |
10.98 |
17.94 |
11.94 |
1.12 |
0.53 |
2.52 |
BR0401-1/2X6 |
1500 |
1.61 |
0.5 |
0.66 |
2.94 |
2.28 |
19.45 |
12.45 |
20.67 |
13.67 |
1.42 |
0.72 |
3.23 |
BR0401-1/2X9 |
1500 |
1.85 |
0.5 |
0.66 |
2.94 |
2.28 |
25.45 |
15.45 |
26.67 |
16.67 |
1.42 |
0.72 |
3.23 |
BR0401-1/2X12 |
1500 |
2.26 |
0.5 |
0.66 |
2.94 |
2.28 |
31.45 |
18.45 |
32.67 |
19.67 |
1.42 |
0.72 |
3.23 |
BR0401-5/8X6 |
2250 |
2.7 |
0.63 |
0.9 |
3.69 |
2.81 |
21.96 |
13.96 |
22.72 |
15.47 |
1.8 |
0.88 |
3.9 |
BR0401-5/8X9 |
2250 |
3.13 |
0.63 |
0.9 |
3.69 |
2.81 |
27.96 |
16.96 |
28.72 |
18.47 |
1.8 |
0.88 |
3.9 |
BR0401-5/8X12 |
2250 |
3.78 |
0.63 |
0.9 |
3.69 |
2.81 |
33.21 |
19.96 |
34.72 |
21.47 |
1.8 |
0.88 |
3.9 |
BR0401-3/4X6 |
3000 |
3.89 |
0.75 |
0.98 |
4.52 |
3.33 |
23.13 |
15.63 |
24.95 |
17.45 |
2.09 |
1 |
4.69 |
BR0401-3/4X9 |
3000 |
4.61 |
0.75 |
0.98 |
4.52 |
3.33 |
29.13 |
18.63 |
30.95 |
20.45 |
2.09 |
1 |
4.69 |
BR0401-3/4X12 |
3000 |
5.83 |
0.75 |
0.98 |
4.52 |
3.33 |
35.13 |
21.63 |
36.95 |
23.45 |
2.09 |
1 |
4.69 |
BR0401-3/4X18 |
3000 |
6.33 |
0.75 |
0.98 |
4.52 |
3.33 |
47.13 |
27.63 |
48.95 |
29.45 |
2.09 |
1 |
4.69 |
BR0401-7/8X12 |
4000 |
8.1 |
0.88 |
1.13 |
5.19 |
3.78 |
36.53 |
22.78 |
38.66 |
24.91 |
2.38 |
1.25 |
5.1 |
BR0401-7/8X18 |
4000 |
9.95 |
0.88 |
1.13 |
5.19 |
3.78 |
48.53 |
28.78 |
50.66 |
30.91 |
2.38 |
1.25 |
5.1 |
BR0401-1X6 |
5000 |
9.33 |
1 |
1.25 |
5.84 |
4.25 |
26.8 |
18.8 |
29.2 |
21.2 |
3 |
1.44 |
6.36 |
BR0401-1x12 |
5000 |
11.93 |
1 |
1.25 |
5.84 |
4.25 |
38.8 |
24.8 |
41.2 |
27.2 |
3 |
1.44 |
6.36 |
BR0401-1X18 |
5000 |
14 |
1 |
1.25 |
5.84 |
4.25 |
50.8 |
30.8 |
53.2 |
33.2 |
3 |
1.44 |
6.36 |
BR0401-1X24 |
5000 |
17.25 |
1 |
1.25 |
5.84 |
4.25 |
62.8 |
36.8 |
65.2 |
39.2 |
3 |
1.44 |
6.36 |
BR0401-1-1/4X12 |
6500 |
19 |
1.25 |
1.5 |
7.22 |
5.13 |
41.63 |
27.13 |
44.56 |
30.06 |
3.56 |
1.81 |
7.72 |
BR0401-1-1/4X18 |
6500 |
23 |
1.25 |
1.5 |
7.22 |
5.13 |
53.63 |
33.13 |
56.56 |
36.06 |
3.56 |
1.81 |
7.72 |
