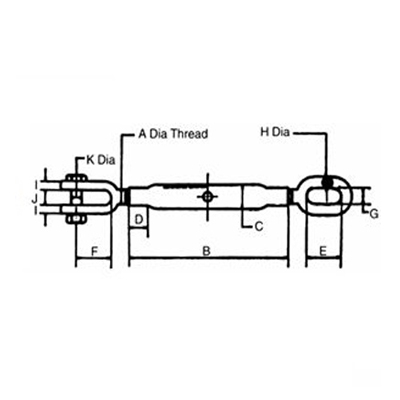

Item NO./ Size(mm)

A

B

C

D

E

WEIGHT

DIA SCREW

LENGTH
OF BODY

DIA
OF BODY

JAW

OVAL EYE

DIA

INSIDE

DIA

DIA PIN

INSIDE

LENGTH

HIDTH

LENGTH

HIDTH

D1

D2

D3

D4

E1

E2

E3

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kg

BR0406-6

6

102

12

3

5

15

7

6

15

8

0.11

BR0406-8.8

8.8

110

15

4

6

16

9

7

19

10

0.23

BR0406-10

10

152

21

5

8

21

11

8

25

11

0.28

BR0406-12

12

175

27

6

10

25

13

11

30

14

0.8

BR0406-16

16

229

27

10

12

40

18

14

41

16

1.4

BR0406-20

20

229

33

12

16

45

20

16

51

22

2

BR0406-22

22

305

33

15

18

48

24

16

51

22

3.5

BR0406-24

24

325

42

16

22

65

28

19

57

25

4

BR0406-28

28

356

48

18

22

59

30

19

57

28

4.5

BR0406-33

33

381

48

20

27

62

34

22

65

35

6.5

BR0406-35

35

381

60

22

28

68

38

22

65

36

8

BR0406-39

39

406

60

24

33

74

42

25

74

38

11
