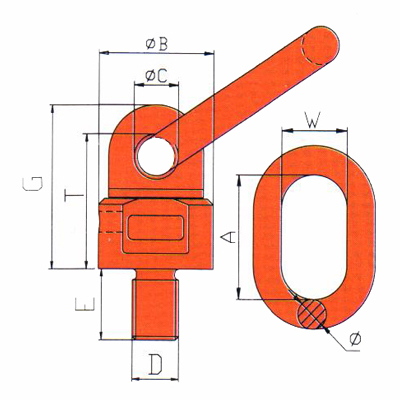

Item No./Size

Weight/KG

WLL/T(4:1)

D×E

B

C

G

T

A

W

Φ

90°

0°

8-BR303-M8

0.41

0.3

0.6

M8×13

36

15

51

41

55

30

13

8-BR303-M10

0.43

0.45

0.9

M10×18

6

15

51

41

55

30

13

8-BR303-M12

0.44

0.5

1

M12×18

36

15

51

41

55

30

13

8-BR303-M16

0.46

1.12

2

M16×20

36

15

52

42

55

30

13

8-BR303-M20

0.96

2

4

M20×30

49.5

19

68

56

70

35

16

8-BR303-M24

1.45

3.15

6.3

M24×30

57

22

78

65.5

85

40

18

8-BR303-M27

1.51

3.15

6.3

M27×35

57

22

78

65.5

85

40

18

8-BR303-M30

2.17

5.3

10.6

M30×35

66

23.5

96.5

80.5

85

40

20

8-BR303-M30(8T)

3.57

8

11.8

M30×35

80

28

112

92

115

50

22

8-BR303-M36

3.6

8

11.8

M36×50

80

27

109

89.5

115

50

22

8-BR303-M39

4.1

8

11.8

M39×90

80

27

109

89.5

115

50

22

8-BR303-M42

3.95

10

15

M42×50

80

27

109

89.5

115

50

25

8-BR303-M48

4.02

10

15

M48×50

80

27

109

89.5

115

50

25
